Erba Hemostasis Line

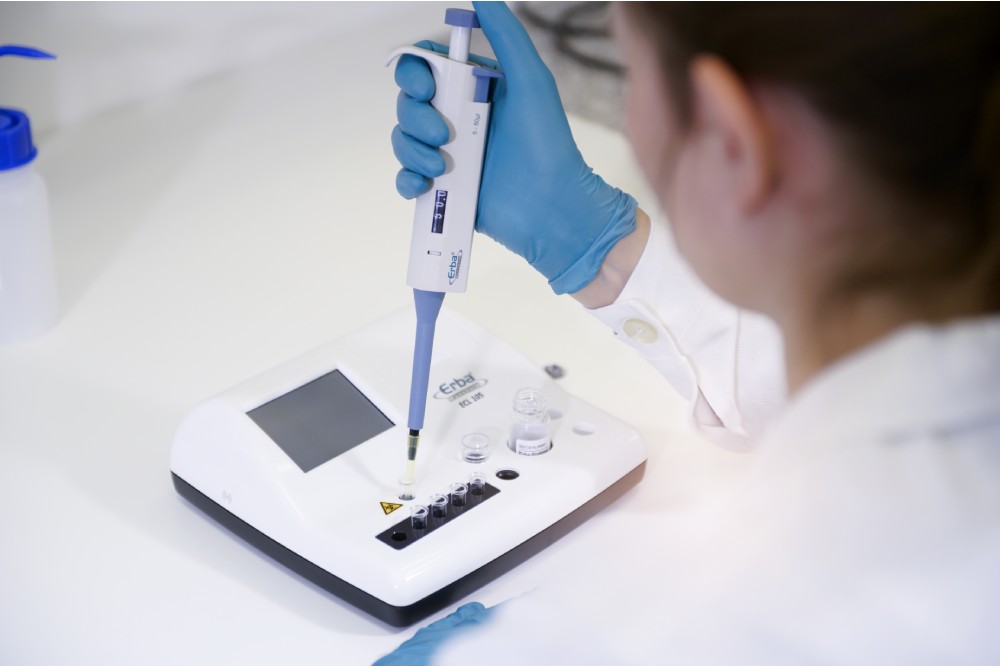

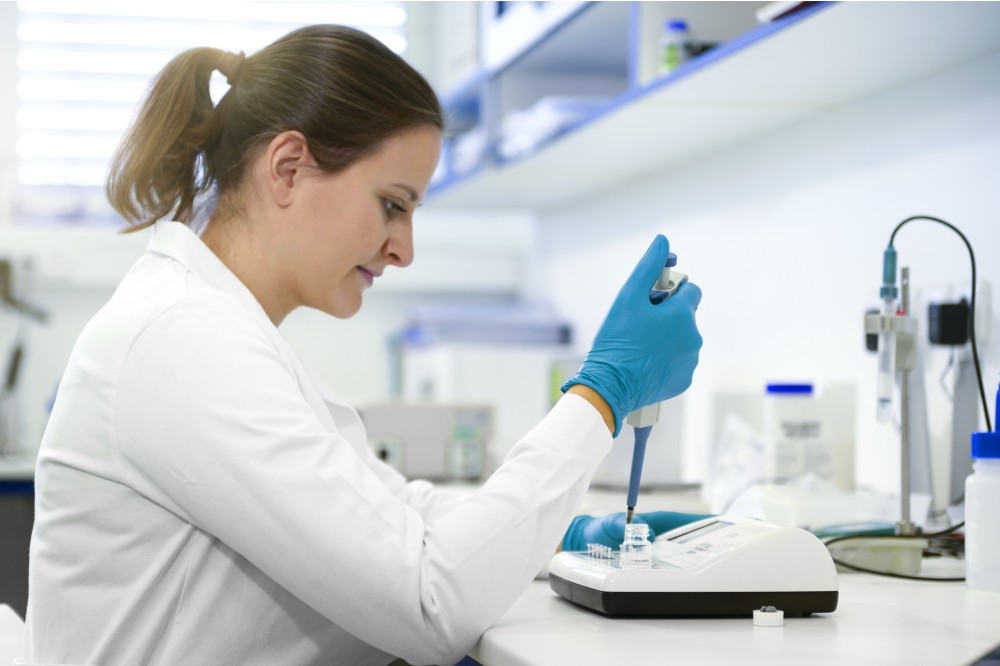

ECL 105

Single Channel Semi-Automated System for Small Laboratories
The ECL 105 analyzer is ideal for small laboratories. It performs measurements of all clotting assays as well as DDimer. With a colour touch-screen and intuitive user interface, the ECL-105 is simple to use and ensures quality results.
Download brochure
Read more

Key features

  • Single channel:
  • Clotting assays by light scatter at 640nm
  • Immuno-Turbidimetric assays at 800nm
  • 5 reaction cups incubation positions at 37°C +/- 0.2°C
  • 5 reagent positions, 1 stirrable
  • 3 positions for 37°C +/- 0.2°C incubated reagents, including 1 for vial with programmable stirring
  • 2 positions for ambient reagents
  • Automatic start with standard pipettes
  • Increased throughput by additional preparation position
  • RFID for security of use
  • Resistive colour touch-screen
  • Built-in thermal printer

Traceability

  • Ready to use with Erba hemostasis reagents
  • Printable calibration curves
  • Monitoring of expirations of reagent, Calibrators and Controls
  • Quality Control program with automatic Levey Jennings graph monitors systém performance
  • LIS compatible (by serial or Ethernet connection)

Others

  • Universal power supply 100-250V ~47-63Hz
  • 216 x 205 x 75 mm / 1 kg
  • 2 USB ports (type A and type B)

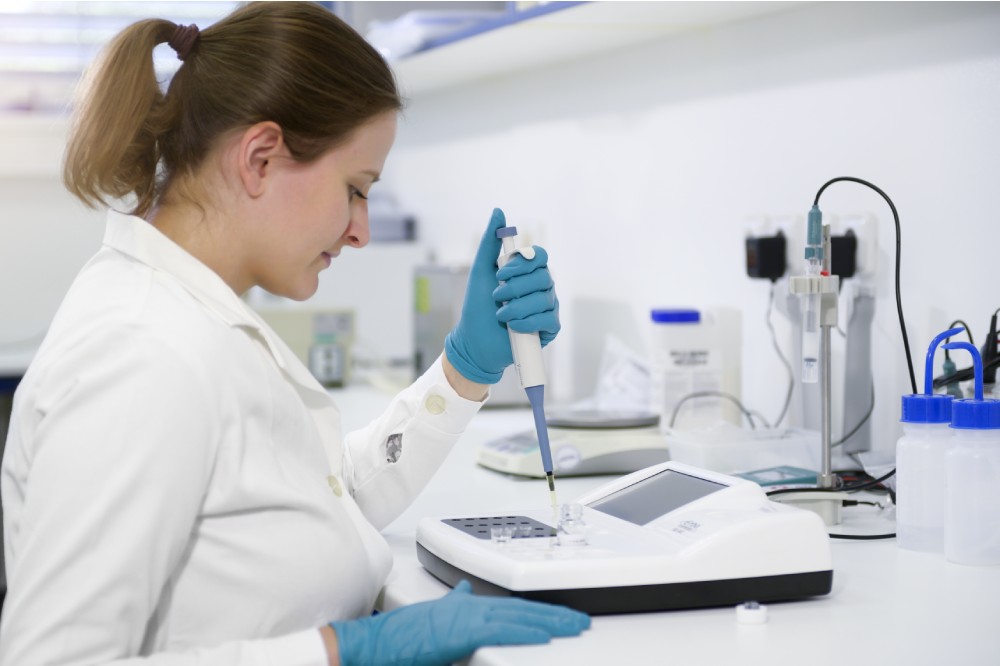

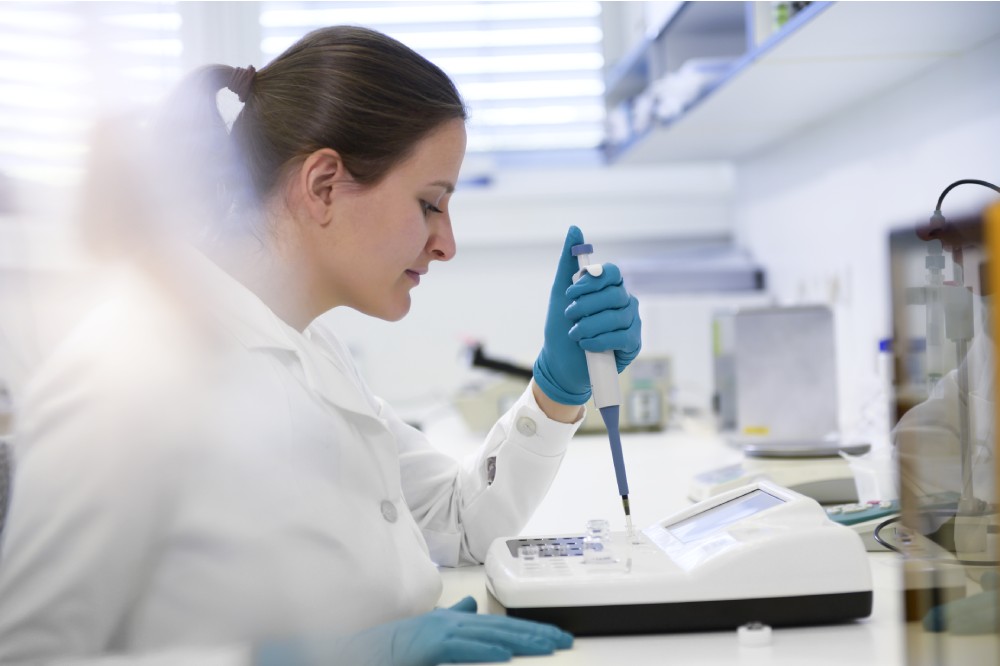

ECL 412

4 channel semi-automated systém for medium size laboratories
The ECL 412 performs all types of hemostasis assays on a single instrument. With its large colour touch-screen and intuitive modern user interface, it is simple to use for all clinical hemostasis testing.
Download brochure
Read more

Key features

  • 4 measuring channels:
  • 4 for Clotting assays by light scatter at 640nm
  • 2 for Immuno-Turbidimetric assays at 800nm
  • 2 for Chromogenic assays by colorimetry at 405nm
  • 20 reaction cups incubation positions at 37°C +/- 0.2°C
  • 12 reagent positions, 2 stirrable
  • 7 positions for 37°C +/- 0.2°C incubated reagents, including 1 for vial with programmable stirring
  • 5 positions for ambient reagents, including
  • 1 for vial with programmable stirring
  • Automatic start with standard pipettes
  • Increased throughput by additional preparation line
  • RFID for security of use
  • 7” Resistive touch-screen
  • Built-in thermal printer

Traceability

  • Ready to use protocols for Erba Hemostasis reagents
  • Printable calibration curves
  • Monitoring of expirations of reagent, Calibrators and Controls

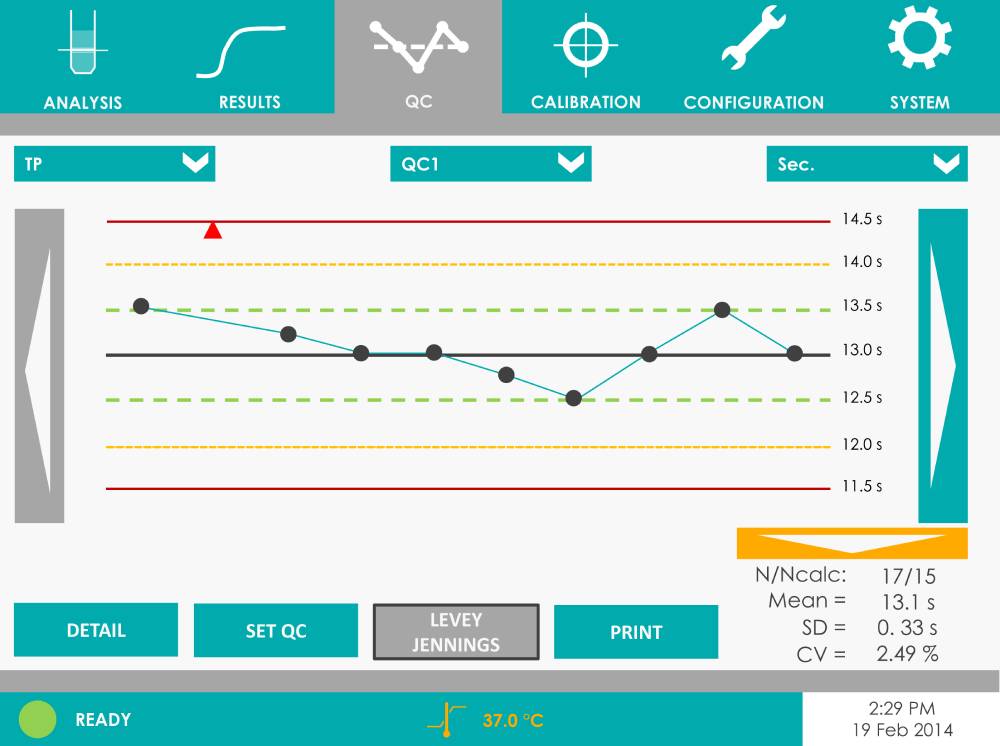

  • Quality Control program with automatic Levey Jennings graph monitors system performance
  • LIS compatible (by serial or Ethernet connection)

Others

  • Universal power supply 100-250V ~47-63Hz
  • 300 x 290 x 90 mm / 3 kg
  • 3 USB ports (2 types A and 1 type B)

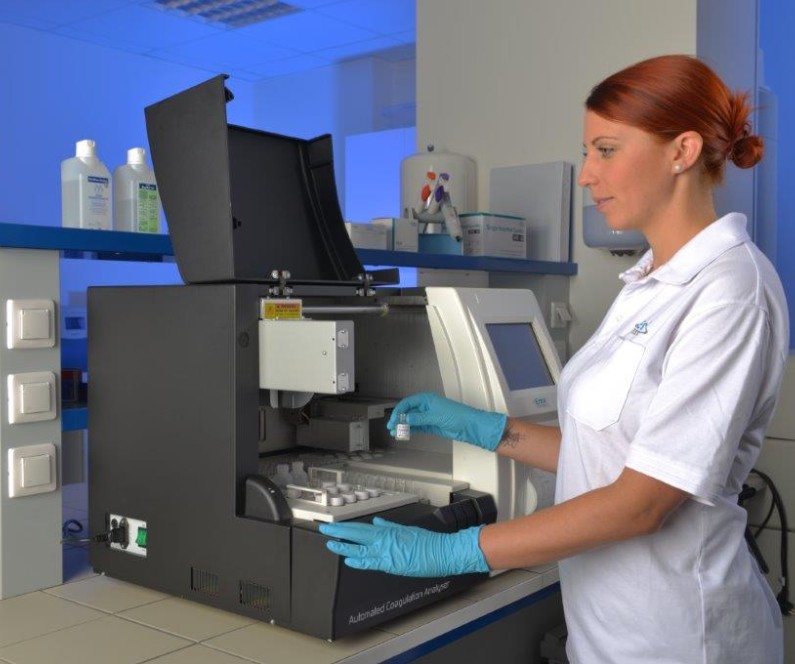

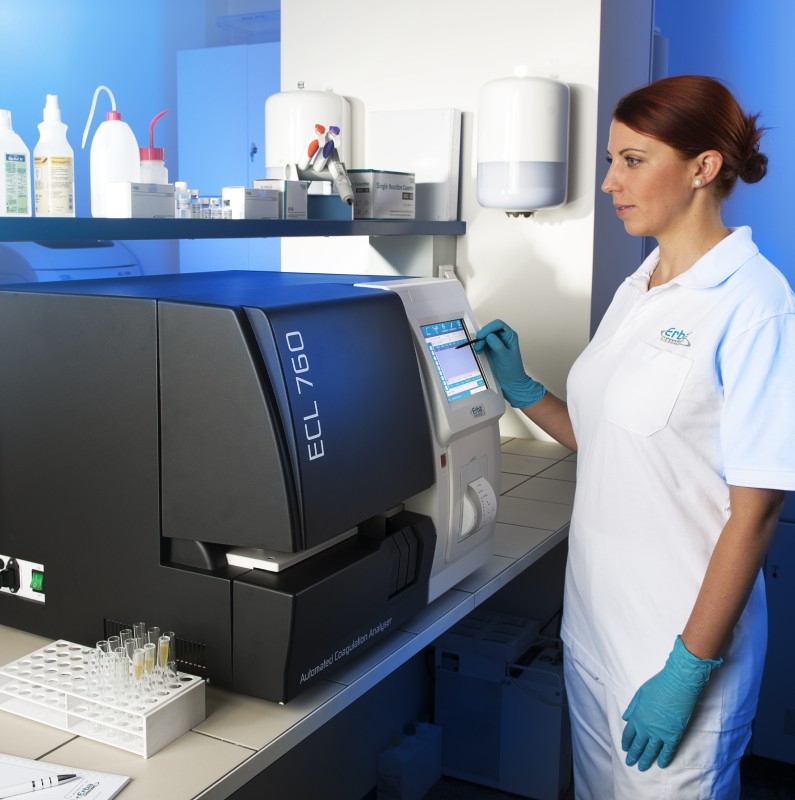

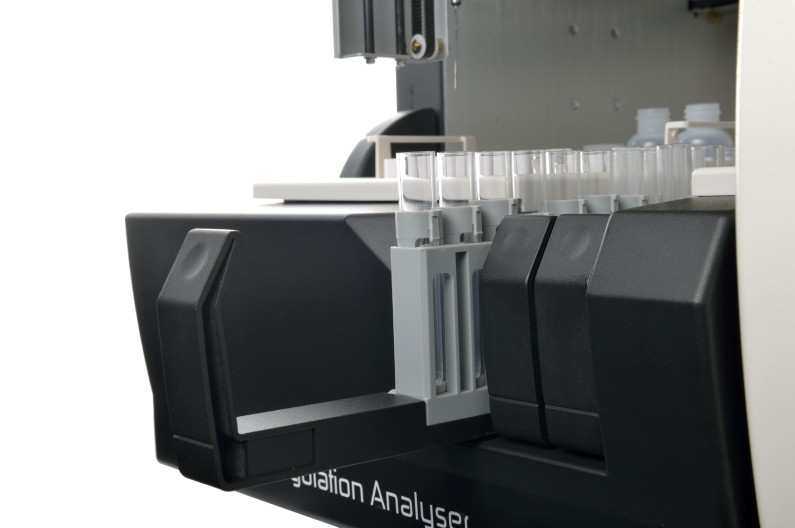

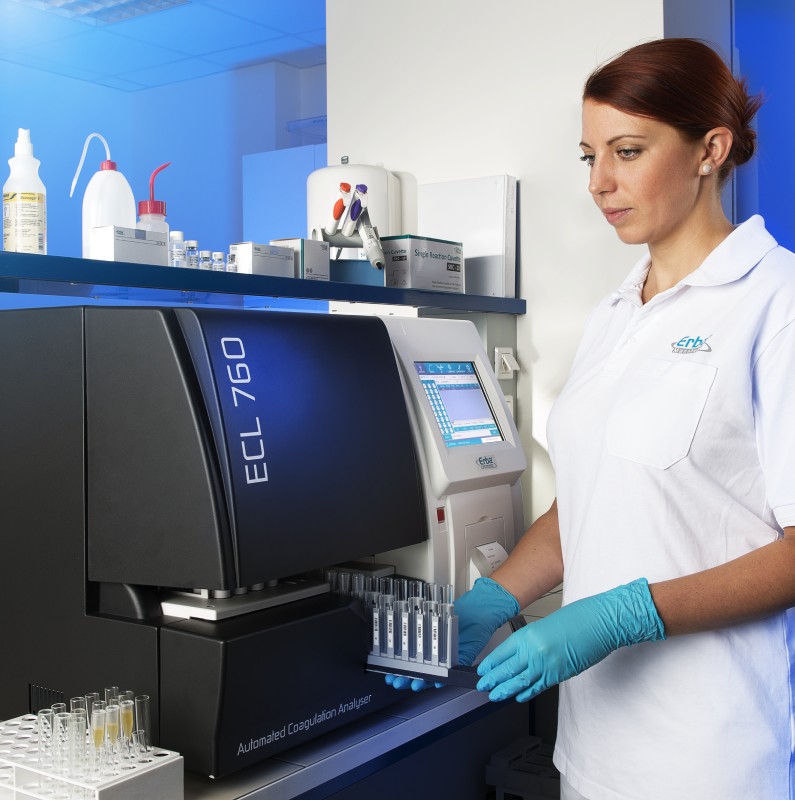

ECL 760

Advanced Fully Automated Hemostasis Analyser The ECL 760 system is a fully automated, randomaccess hemostasis analyser delivering accurate and precise results.

It is able to perform routine screening, immunologic and chromogenic assays. Protocols for Erba hemostasis reagents are preprogrammed for ease of use. User defined testing is also possible, allowing the consolidation of both specialty and routine reagents onto one fully automated analyser.
Download brochure
Read more

Key Features & Advantages

  • Reliable and safe testing takes performance to the next level
  • Operator password protection
  • lCheck status of individual samples during testing
  • Make specialty testing routine through convenient and consolidated testing
  • Clotting, chromogenic and immunochemical assays on one platform
  • Workflow consolidation for simultaneous specialty and routine testing
  • Maximize high-volume routine workloads with true random-access and walk-away ability
  • Auto QC reporting and auto-calibration
  • STAT turnaround time priority setting
  • Better utilize resources with time and money saving features

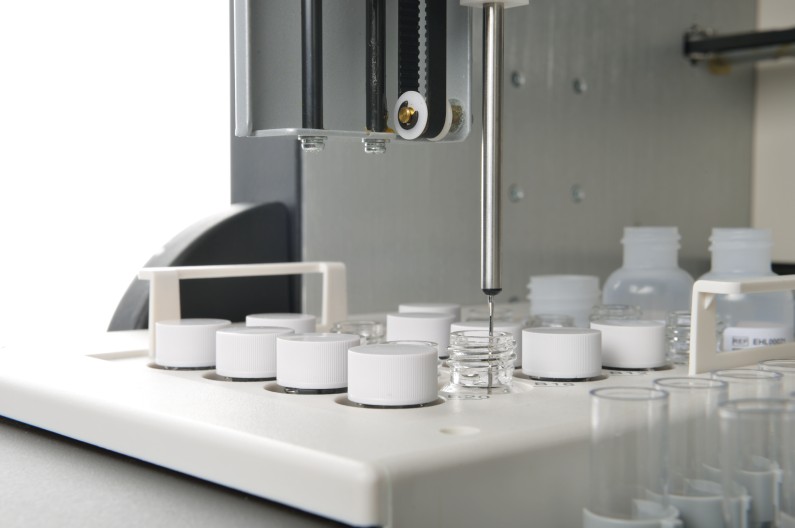

  • On-board reagent cooling
  • Configurable reagent racks (allows different-sized bottles on a single rack and minimal reagent waste (dead volume) via reagent adaptors
  • Automatic monitoring of reagent levels
  • Easy daily maintenance of less than 5 minutes
  • Enhance result management through innovative software features
  • User-defined specialty menu with reflex testing and customized profiles
  • QC program with automatic Levey-Jennings graph monitors system performance

Next features

  • Automatic monitoring of reagent levels and on-board
  • Integrated barcode scanning for samples increases the ease of use
  • The reagent menu includes PT, APTT, Fibrinogen, Thrombin Time, Antithrombin, Protein S, Protein C, Coagulation Factors, LA and D-Dimer
  • Open channel programming allows development of user definable assays
  • Random-access, walk-away workflow
  • Easy-to-use software with color touchscreen
  • STAT sample processing enables critical tests to be processed at any time
  • Analysed data may be displayed or printed with reaction curves for flexibility in result management

Erba Hemostasis Reagent Line

Universal reagents:
Can be used on Erba instruments (automatic or semi-automatic) as well as open systems (optical or mechanical), different packaging sizes can accommodate the needs of small to medium-high laboratories.

A comprehensive and evolving reagent line:
More parameters will be added to respond to customer needs.
